AFR013 Wind Power and Solar Power Generation Training Equipment Educational Equipment Vocational Training Solar And Wind Training System

1. Product Introduction
1.1 Product Description

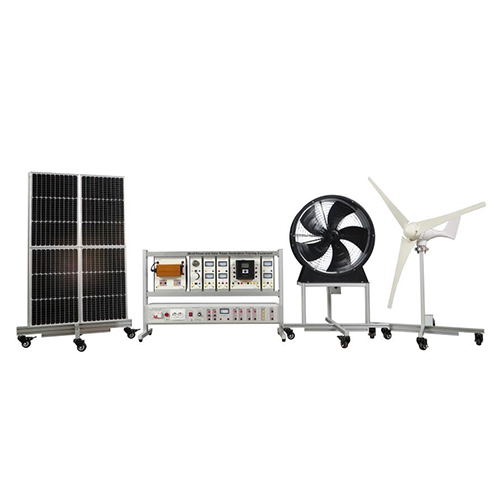

This training system simulates the process of wind and solar power generation, allowing students to understand wind and solar power generation. The wind turbine is driven by a fan, and the solar panel is driven by a high-power metal halide lamp. This training table cultivates students' hands-on ability and is suitable for use in engineering colleges, training institutions, and technical schools.
1.2 Product Features
(1) This training table adopts an aluminum column structure with built-in measuring instruments and universal wheels at the bottom for easy movement.
(2) It can be used to make a variety of experimental circuits and components. Students can combine them into different circuits to do different experiments and training content.
(3) The training workbench is equipped with a safety protection system.
2. Technical Specifications
2.1 Basic Technical Parameters
Power supply    Single-phase three-wire AC 220V / 50Hz
Photovoltaic panels    Rated peak operating power: 20Wp
Short-circuit current: 1.9A
Peak current: 1.7A
Open-circuit voltage: 18.5V
Wind turbines    Fan direction: Horizontal
Start-up speed: 2.5 m/s
Rated fan speed: 10 m/s
Maximum wind speed: 40 m/s
Rated operating power: 200W-500W
Air direction adjustment: Automatic
Operating conditions    Temperature: -10 to +40°C
Temperature ≤ 80°C
Ambient air: Free of corrosive air, fuel, or excessive conductive dust
2.2 Equipment Parameters
Wind turbine    800mm*800mm*1500mm
Axial fan    800mm*800mm*1500mm
Photovoltaic panel    800mm*800mm*1200mm
Power supply box    1080mm*300mm*740mm
Weight    ≤150kg


3. Product Introduction
3.1 Product Overview
No.    Name    Quantity
1    Photovoltaic panels    1
2    Modules    1
3    Power supply box    1
4    Axial flow fan    1
5    Wind turbine    1
3.2 Product module
No.    Name    Quantity
1    Inverter module    1
2    Light bulb load module    1
3    AC measurement module    2
4    DC measurement module    1
5    Wind-solar hybrid controller module    1
3.3 Product power box
No.    Name    Quantity
1    2P circuit breaker    1
2    Power indicator light    1
3    Socket    1
4    Fan control unit    1
5    Battery unit    1
6    DC voltmeter measurement unit    1
7    Photovoltaic panel output unit    2
8    Wind turbine output unit    1
9    Unloading resistor    1
3.4 Product accessories
No.    Name    Quantity
1    4mm electrical safety connection cable (yellow)    5
2    4mm electrical safety connection cable (blue)    5
3    4mm electrical safety connection cable (red)    10
4    4mm electrical safety connection cable (two-color)    5
5    4mm electrical safety connection cable (black)    10
6    Communication cable    1
7    Connecting cable (four-core)    1
8    Connecting cable (five-core)    1
9    Industrial waterproof plug    1
10    Connecting cable (three-core)    1
11    Charger    1
12    Multimeter    1
13    Fuse (5A)    5
14    Fuse (10A)    5
15    USB flash drive    1
4. Product Teaching Experiment List
(1) Photovoltaic Panel Parallel Connection Experiment
(2) Photovoltaic Panel Series Connection Experiment
(3) Photovoltaic Panel Charging Experiment
(4) Battery Parallel Connection Experiment
(5) Battery Series Connection Experiment
(6) Battery Charging Experiment
(7) Battery Inversion Experiment
(8) Simulated Wind Source Control Experiment
(9) Wind-Solar Complementary Experiment
